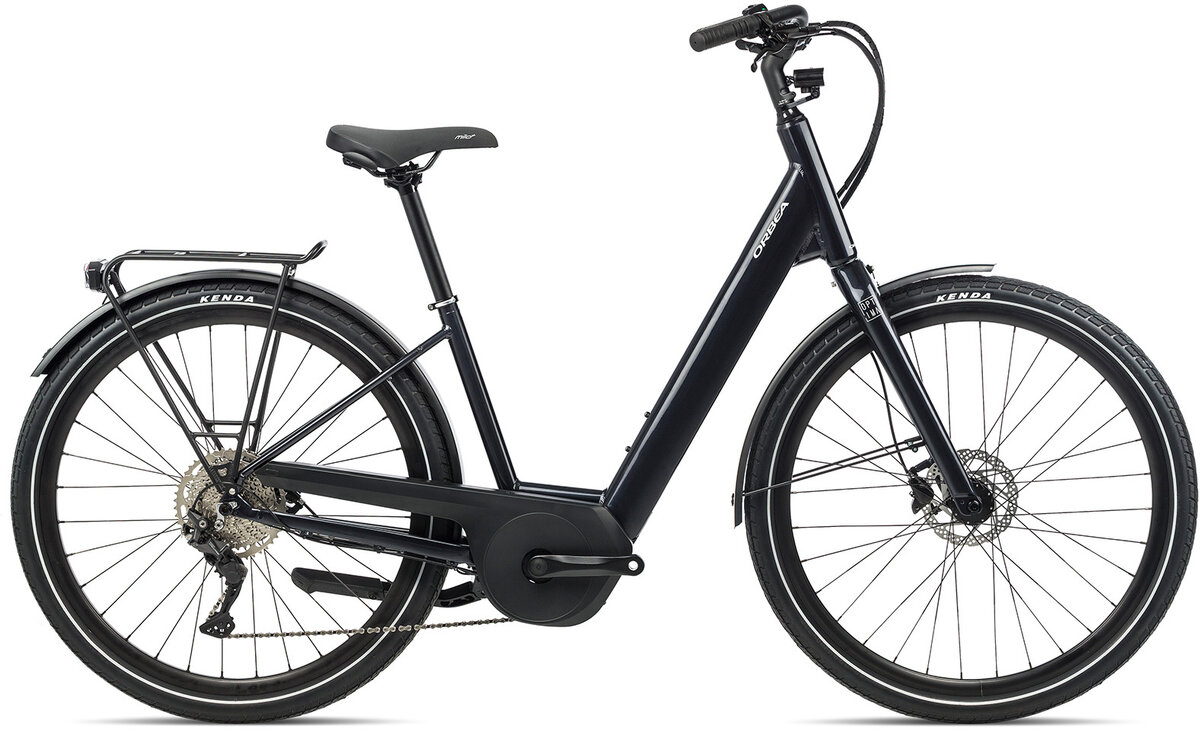

Orbea Optima E40

Orbea Optima E40
  • Color: Night Black
  • Color: Gloss Blue
  • Color: Metallic Dark Red
This item is currently not available.


It's All About Balance
Optima is an apparently "normal" bicycle, but both the architecture and the ergonomics of the new Optima are innovative. It is a bike designed to be used as an electric bicycle from the conceptual design phase. This has meant revamping the product to the point that even its architecture changed.

- Easy access
- Balanced city geometry
- Comfortable grips and saddles
- Weatherproof
- Wide gear ratio
- Lightweight alloy frame
- Big tires

Urban Essence
- Lights, front and rear
- Fenders and chainguard
- Kickstand


Frame Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery
Fork Optima 400mm Alloy Post mount
Wheels READY GR 29-700 C
Tires Kenda 1172 700c x 50
Crankset Prowheel PRA105 42t
Shifters Shimano Deore M4100
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus
Cassette/Freewheel Shimano Deore M4100 11-46t 10-Speed
Chain KMC X10
Brakes Shimano MT200 Hydraulic Disc
Handlebars Orbea City Riser Alu 640mm
Stem Orbea TDS-D617
Headset VP-Z104PD 1-1/8" Semi-Cartridge
Seatpost Alloy 31.6x400mm Offset 0
Saddle Selle Royal Milo Plus DR
Pedals Sold separately
Accessories & Extras Joss Spanninga Kendo Steps front light
Joss Spanninga Lineo XDS Dinamo rear light
Orbea Optima rear rack w/hidden stays
SKS EDGE Alloy C56R fenders
Ursus Power single adjust central kickstand
Motor Ebikemotion X35 Plus 20mph
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Controller/Display OC monochrome ANT+ LEV / Ebikemotion iWoc TRIO
Charger Ebikemotion X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Night Black / Small 08434446799051 L60217XV
Night Black / Medium 08434446799082 L60218XV
Night Black / Large 08434446799112 L60220XV
Gloss Blue / Small 08434446799075 L60217XX
Gloss Blue / Medium 08434446799105 L60218XX
Gloss Blue / Large 08434446799136 L60220XX
Metallic Dark Red / Small 08434446799068 L60217XW
Metallic Dark Red / Medium 08434446799099 L60218XW
Metallic Dark Red / Large 08434446799129 L60220XW
