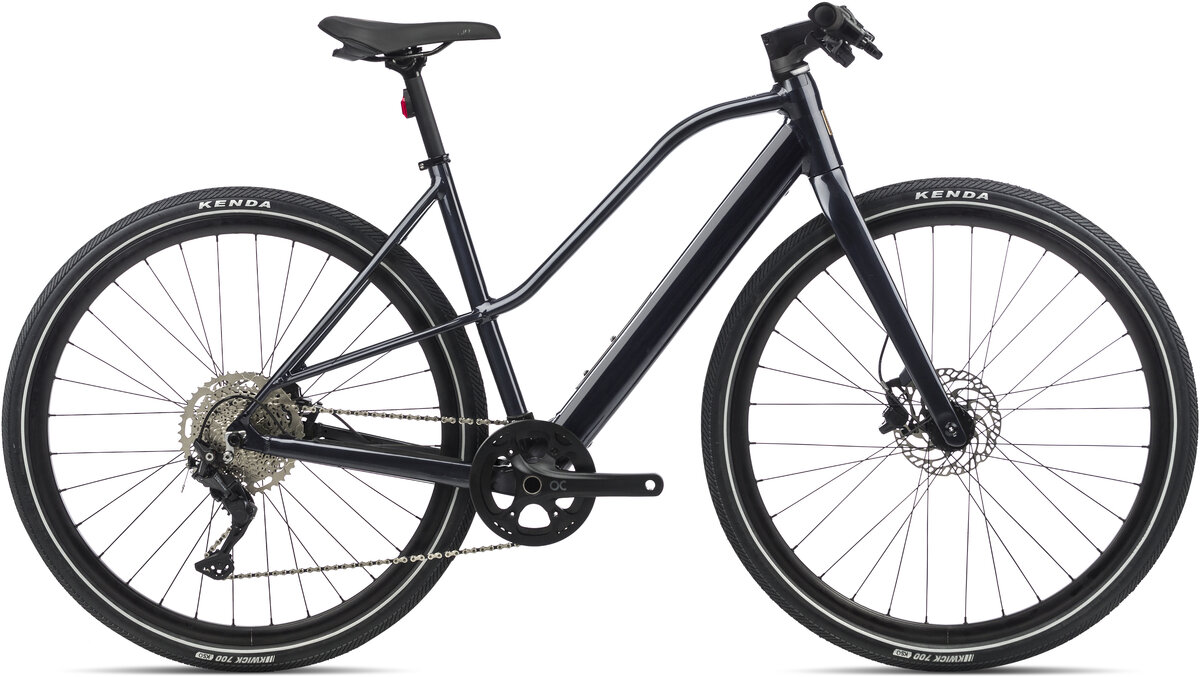

Orbea VIBE MID H30

No Image Available
This item is currently not available.

Details

URBAN LIGHTNESS
In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

Vibe is a bike that is lightweight and enjoyable to ride—with a motor, battery, and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

INTEGRATED LIGHTS
- It's like magic—Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high-beam light, Vibe is ready for the road.

IWOC TRIO
- Vibe's control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.
- On, off, and light control
- Battery & assist level
- Information by RBG LED
- Smart & compact

INTERNAL BATTERY
- The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Vibe's Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

PAS SENSOR
- Vibe's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.
- 40 pulses per second
- Magnetized lock ring sensor
- Proprietary algorithm & electronics

ICR PLUS
- Internal Cable Routing is carefully guided along the best path under the stem and through the head tube with no rub or rattle and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.

Specs

Frame Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximum tire, 1-1/2" semi-integrated headset, 41x86.5 Pressfit BB, carrier, and fender compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/2", 700x40 maximum tire, flat mount disc, Thru-Axle 12x100mm, Long fender compatible
Wheels Ready GR
Tires Kenda K1052 700x45C Reflective type+puncture protection
Crankset OC 42T, w/ Chainguard
Shifters Shimano Deore M4100
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M4100 11-46t 10-Speed
Chain KMC X10
Brakes Magura MT30 Hydraulic Disc Easy Route Connection
Handlebars Alloy 31.8mm 12mm RISE 700mm
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost OC 27.2 Offset 0, for integrated light
Saddle Selle Royal Lift 1404 HRN 266x170mm
Pedals VP-537 Black
Accessories & Extras Front Position Light: on head tube, COB LED, On/Off, 60 Lumen, ECE50
Rear Light: Lezyne FENDER STVZO seatpost mounting 11 lumens
Bell: Knog OI Classic
Motor Ebikemotion X35 Plus 20mph
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Controller/Display Ebikemotion iWoc TRIO
Charger Ebikemotion X35

* Subject to change without notice.
