Orbea Terra M22Team 1X
$4,199.25
$5,599.00
Details
Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

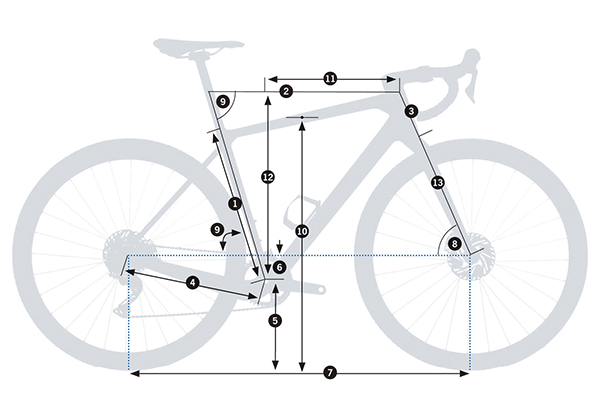

| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| 1 1 - SEAT TUBE (C-T) | 405 | 438 | 471 | 504 | 537 | 570 |
| 2 2 - TOP TUBE (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
| 3 3 - HEAD TUBE | 110 | 131 | 152 | 178 | 199 | 220 |
| 4 4 - CHAINSTAY | 420 | 420 | 420 | 420 | 420 | 420 |
| 5 5 - BB HEIGHT (30-622) | 263 | 263 | 263 | 265 | 265 | 265 |
| 6 5 - BB HEIGHT (40-622) | 278 | 278 | 278 | 280 | 280 | 280 |
| 7 6 - BB DROP | 78 | 78 | 78 | 76 | 76 | 76 |
| 8 7 - WHEELBASE | 1009 | 1019 | 1029 | 1044 | 1053 | 1062 |
| 9 8 - HEAD ANGLE | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
| 10 9 - SEAT ANGLE | 74º | 74º | 73.5º | 73.5º | 73º | 73º |
| 11 10 - STANDOVER (30-622) | 713 | 746 | 768 | 798 | 825 | 853 |
| 12 10 - STANDOVER (40-622) | 727 | 755 | 783 | 813 | 840 | 868 |
| 13 11 - REACH | 375 | 382 | 389 | 395 | 402 | 409 |
| 14 12 - STACK | 526 | 548 | 570 | 592 | 614 | 636 |
| 15 13 - FORK LENGTH | 390 | 390 | 390 | 390 | 390 | 390 |
| 16 TRAIL (30-622) | 66 | 62 | 59 | 59 | 56 | 53 |
| 17 TRAIL (40-622) | 71 | 68 | 64 | 64 | 61 | 58 |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 61.1"-65.4" |
| Small | 65.7"-67.7" |
| Medium | 68.1"-70.5" |
| Large | 70.9"-72.8" |
| X-Large | 73.2"-75.2" |
| XX-Large | 75.6"-81.5" |
Specs
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box. |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Wheels | FULCRUM Rapid Red 500 DB |
| Axles |
Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Tires | Pirelli Cinturato™ Gravel H 700x40c TLR |
| Crankset | Campagnolo Ekar 40t |
| Shifters | Campagnolo Ekar Ergopower |
| Rear Derailleur | Campagnolo Ekar |
| Cassette/Freewheel | Campagnolo Ekar 10-44 13-Speed |
| Chain | Campagnolo Ekar C-link |
| Brakes | Campagnolo Ekar |
| Handlebars | Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Stem | OC Road Performance RP10, -8º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle | Prologo Akero AGX STN size 155mm |
| Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Infinity Green Carbon View Matt / Small | 08434446225321 | N14803AI | ORB27653934M |
